VRC-EHC

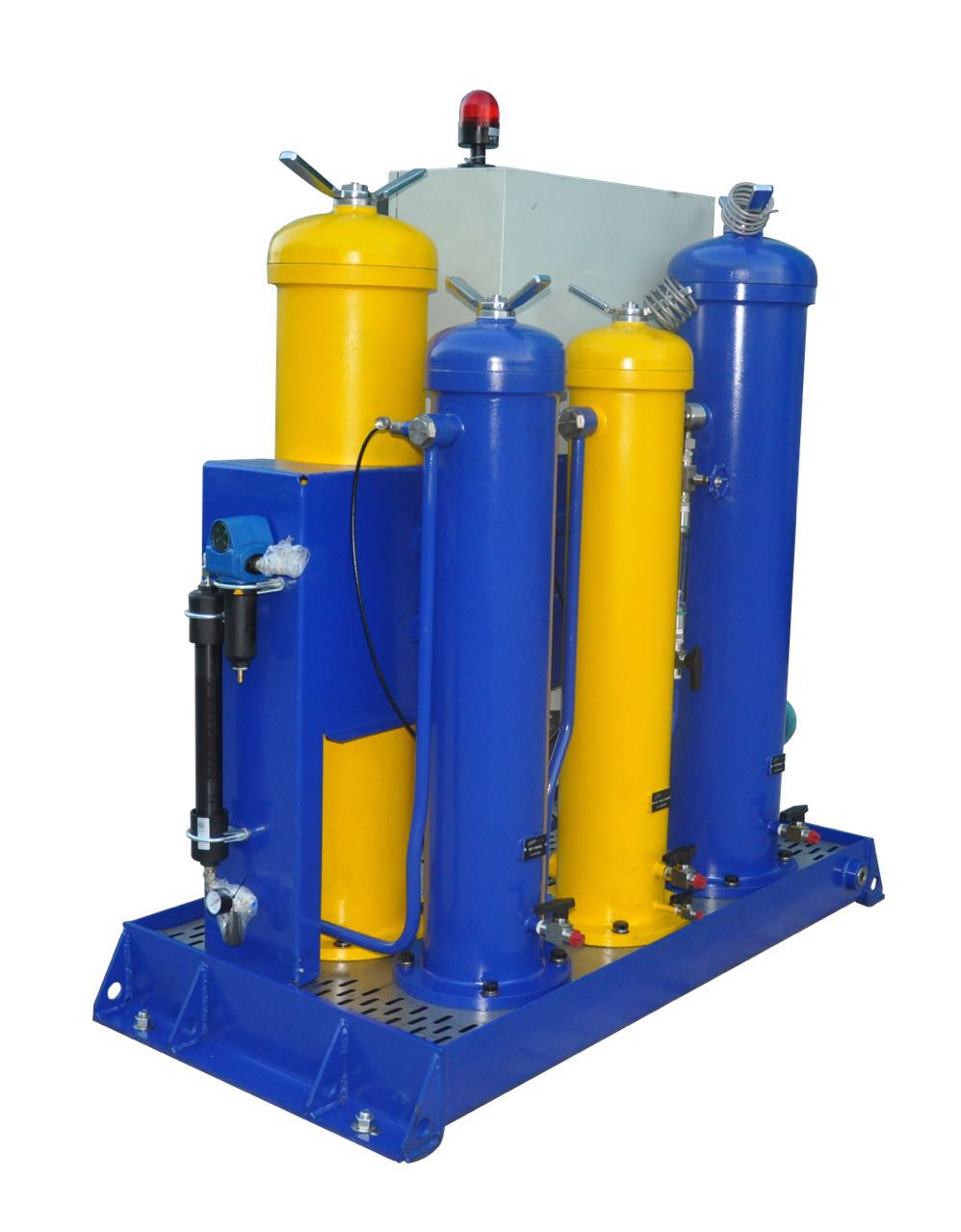

VRC-EHC  (Phosphate Ester oil Cleaning System)

HDTech patented Electric Charge Balance (ECB) plus DCB technology works by:

1. Passing contaminated fluid over a series of electrodes that carefully charge particles, both positive (+) and negative (-).

2. Particulate contamination as small as 0.1 microns picks up this charge.

3. Oil, a non-conducting fluid, stays neutral.

4. The ionized fluid streams are then re-combined and mixed under turbulent flow.

5. Positively and negatively ionized contaminant particles are attracted to each other,growing in size as they agglomerate.

6. Sub-micron particles become micron-sized particles. Micron-sized particles become multi-micron particles, etc.

7. All insoluble varnish are removed by ECB.

8. HDTech use own patented DCB to remove all soluble varnish.

9. Of course,HDTech use the state-of-art water removal technology (WRD)to remove water instead of traditional vacuum and coalesce technology.

Once larger, these particles are then easily removed by standard filtration.

ECB+DCB removes the sticky varnish from:

Servo & precision valves,Bearings,Shafts,Other critical parts

ECB+DCB accomplishes sub-micron purification while:

Maintaining fluid lubricity
Removing water content
No affect on additive packages
