SF6 Recycling Cart

SF6-Recycling cart product introduction

SF6 Gas Recycling Cart;

WKVC150-4 is a fully functional SF6 recycling cart with following standard function;

1. Evacuate SF6 gas from the insulated chamber;

2. Liquefication and storage SF6 gaseous after dispose;

3.Evacuate gas and fluid from isolated chamber when SF6 device finish maintenance; refill SF6 into the isolated chamber the stored liquid SF6 will be gasified through circulating and recirculating of dryer and filter loop, and the storage tank and connected conveying pipe of the recovery vehicle will be evacuated, also, SF6 can be transported between the gas cylinder and the storage tank.

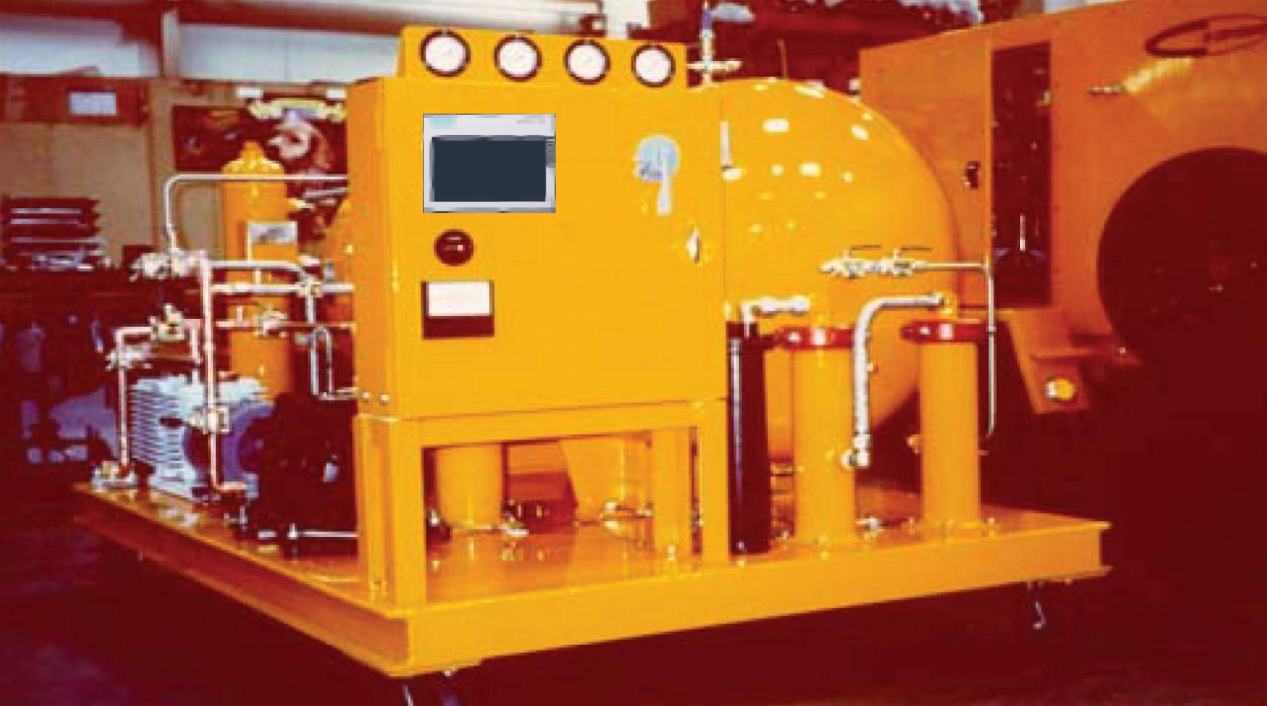

The WKVC150-4 SF6 recycling car is installed on a small stable car and which covered by high quality paint to prevent metal rust. Two directional wheels and universal wheels provide the stability when using on the hard surface.

Accessories;

This type SF6 recycling cart equipped with Vacuum pump, Compressor, Evaporator, Filter, High performance regenerative dryer and control unit.Equipped liquid tank is the standard configuration of this SF6 recycling cart and which is certificated by ASME (American institute of mechanical engineers), User can choose a gas cylinder licensed by DOT (US Department of Transportation).

REI company possess the most complete SF6 recycling cart for customers. Moreover, customers can customize their own products based on special purpose.

Technical Data;

Tank volume:300L(280KG) (Optional)

Vacuum pump:65m3/hr, Final vacuum 0.01mbar (Optional)

Compressor:16m3/hr, Max output pressure 50bar (Optional)

SF6 liquid tank heater:5KW

Installation: Casters frame

Voltage：380V, Three phase,50HZ

Control Voltage:220V Alternating current or 24V Direct current

Control System:10 touch screen control system

Maximum power:18KW

Body sell: Metallic material (Selective configuration)

Desiccator：60pound(27.2KG)

Filter:2

Weight：About 1280KG

Number of trailer axles：None

   2.1 Equipment parameters
